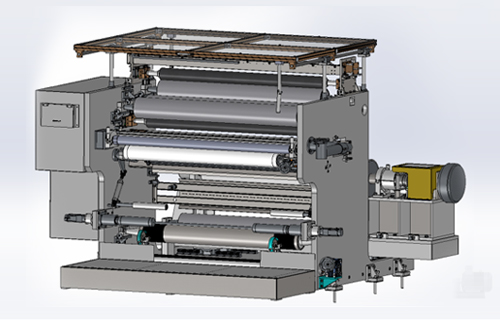

Lithium Electric Slitting Machine

Width of copper foil before cutting: 1380mm (customized according to customers’ requirements)

Width of the finished product: 200~1320 ±0.5mm (adjustable)

Thickness of the copper foil: 4~12μm

Maximum weight of unwinding: 2000kg

Maximum diameter of unwinding: φ600mm

Maximum weight of winding: 300kg

Core Roller of unwinding: φ210mm

Maximum mechanical speed: 100m/min

Slitting tension: 0~1000N (continuously variable)

The 2 air-expansion shaft each has independent tension control and regulation system.

Static balance of each drive shaft: ≤5g

Roundness of guide roller for each function: <0.015mm

Parallelism between guide rollers: <0.02mm
